Order Instructions

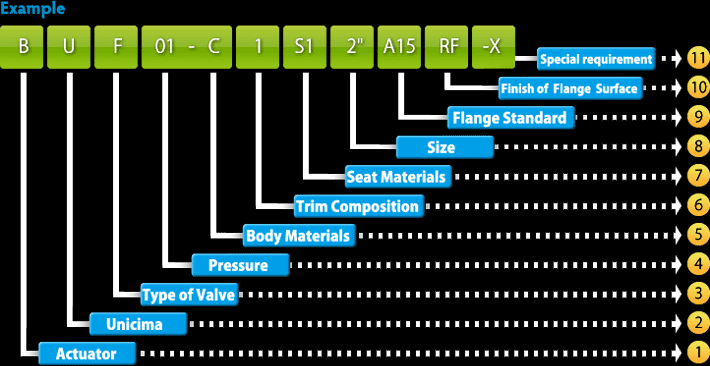

Please inform us the following data of 1 to 10 .
11 is the customer's special request. Please show us in detail,if necessary.

1Actuator
1) B : Non actuator
2) - : Gear opera80n mode Al,AII(l standard,ll on custOmer's request)
3) - : Lever(nO Code)
4) - : Actuator mode
2+3+4 Valve Model
Model | Type and Pressure | Size | Model | Type and Pressure | Size |
---|---|---|---|---|---|
UF01 | Floating ball valve Class150 | 1/2"∼8" | UF03 | Floating ball valve Class300 | 1/2"∼8" |
UT01 | Trunnion ball valve Class150 | 2"∼36" | UT03 | Trunnion ball valve Class300 | 2"∼36" |
UF06 | Floating ball valve Class600 | 1/2"∼1-1/2" | UT06 | Trunnion ball valve Class600 | 2"∼36" |
UF09 | Floating ball valve Class900 | 1/2"∼1" | UT09 | Trunnion ball valve Class900 | 1-1/2"∼20" |
UF15 | Floating ball valve Class1500 | 1/2"∼1" | UT15 | Trunnion ball valve Class1500 | 1-1/2"∼16" |
U3T01 | T port 3-way ball valve Class150 | 1/2"∼8" | U3T03 | T port 3-way ball valve Class300 | 1/2"∼8" |
U3L01 | L port 3-way ball valve Class150 | 1/2"∼8" | U3L03 | L port 3-way ball valve Class300 | 1/2"∼8" |
U3Y01 | Y port 3-way ball valve Class150 | 2"∼12" | U3Y03 | Y port 3-way ball valve Class300 | 2"∼12" |
UJ01 | Steam jacketed floating ball valve Class150 | 3/4"∼8" | UJ03 | Steam jacketed floating ball valve Class300 | 3/4"∼8" |
UT25 | Trunnion ball valve Class2500 | 2"∼8" |
1Unicima
2Type of valve
1) F : Two way floating valve
2) T : Two way trunnion valve
3) J : Steam jacketed ball valve
4) 3L : L-pattern Three way
3) 3T : T-pattern Three way
3) 3Y : Y-pattern Three way
Remark : The sign F denotes forged steel ball valve
3 Pressure code
Code | 01 | 03 | 04 | 06 | 08 | 09 | 15 | 25 |
---|---|---|---|---|---|---|---|---|
Pressure | 150LB PN20 JIS10K |
300LB PN50 JIS20K |
400LB PN64 |
600LB PN100 JIS40K |
800LB | 900LB PN150 |
1500LB PN250 |
2500LB PN420 |
4 Body Materials
Code | C | L | 1 | 2 | 3 | D3 | 4 | D4 |
---|---|---|---|---|---|---|---|---|
Materials | WCB | LCB | A105 | LF2 | CF3 | 304L | CF8 | 304 |
Code | 5 | D5 | 6 | D6 | X | |||
Materials | CF3 M |
316L | CF8M | 316 | Other materials described in the technical note |
5 Trim Composition
Code | 0 | 1 | 2 | 3 | 4 | 5 |
---|---|---|---|---|---|---|
Materials | WCB/A105 | WCB/A105 | CF8/304 | CF8M/316 | CF3/304L | CF3M/316L |
composition | (HCr Plating) | (ENP Plating) | L | |||
Code | 6 | 7 | 8 | X | ||
Materials composition |
LCB /LF2 (HCr Plating) |
LCB /LF2 (ENP Plating) |
NACE0175 | Other materials described in the technical note |
6 Seat Materials
Code | Soft seat | |||||||
---|---|---|---|---|---|---|---|---|
S1 | S2 | S3 | N | P | V | D | H | |
Materials | PTFE | Super PTFE |
Glass fibre+ MoS2+PTFE |
Nylon | PEEK | Viton | Devlon | Special graphite |
Code | Metal seat | |||||||
M1 | M2 | M3 | M4 | |||||
Materials | Ball/HCr Seat/Ni45 |
Ball/(STL)Stellited Seat/(STL)Stellited |
Ball/(SFNI) Nickel Alloy Overlay Seat/(STL)Stellited |
Ball/Tungsten Carbide Seat/Tungsten Carbide |
7 Size
1/2"∼36"(Example for reduced bore valve:10"X8")
8 Flange Standard
Standard | ANSI 150∼2500 | JB 16∼250Kgf/cm² | JIS 10K∼20K | HGJ16∼250Kgf/cm² |
---|---|---|---|---|
Pressure | 1A15∼250 | J16∼J250 | 10K∼20K | H16∼250 |
9 Finish of Flange Surface
Code | RF | RTJ | FF | SF | LF |
---|---|---|---|---|---|
Type | Raised face |
Ring joint | Flat face | Small female |
Large female |
Code | ST | LT | SM | LM | SG |
Type | Small tongue |
Large tongue |
Small male | Large male | Small groove |
Code | LG | BW | SW | ||
Type | Large groove | Butt weld | Socket weld |
10Customer’s Special request
1) --- : No request (No code)
2) X : Special request. Please specify in detal.
